Saving 90% Engery / Closs Flow Door Air Curtains With High Air Flow / Pure Copper Motor

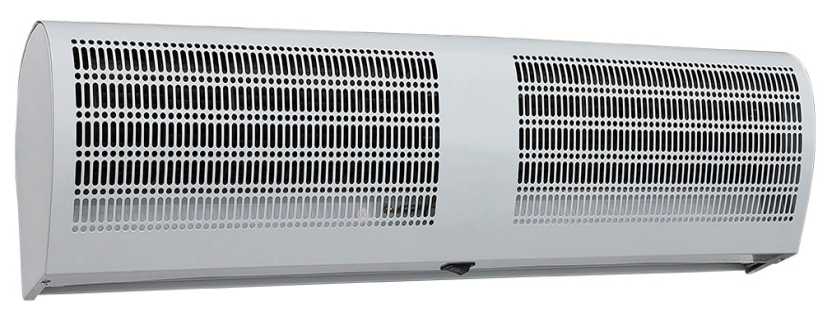

Slim all metal housing with esthetic curved design - Natural Air Curtain
PRODUCTS PARAMETERS
Voltage / Frequency 220 - 240V / 50Hz or 110V / 60HZ , 110V / 50HZ , 220V / 60HZ are all available
| Model | Diameter of Impeller | Input Power | Air
Velocity | Air
Volume | Noise | Net
Weight | Gross
Weight | Unit
Size | Carton
Size | Mounting
Height |
| (mm) | (W) | (m/s) | (m³/h)/CFM | (dB) | (KG) | (KG) | (mm) | (mm) | (m) |
| FM-1209A-2(Y) | 120 | 150 | 11 | 1780/1047 | ≤45 | 10.2 | 12.5 | 900×220×195 | 940×265×220 | 2.3-3 |
| FM-1210A-2(Y) | 120 | 150 | 11 | 1980/1164 | ≤46 | 12.3 | 13.8 | 1000×220×195 | 1040×265×220 | 2.3-3 |
| FM-1212A-2(Y) | 120 | 180 | 11 | 2370/1394 | ≤48 | 13.7 | 15.5 | 1200×220×195 | 1240×265×220 | 2.3-3 |
| FM-1215A-2(Y) | 120 | 250 | 11 | 2970/1747 | ≤49 | 16.3 | 18.5 | 1500×220×195 | 1540×265×220 | 2.3-3 |
Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating
Keeping indoor with fresh air
Door Air Curtains Working Principle - Saving 90% Engergy

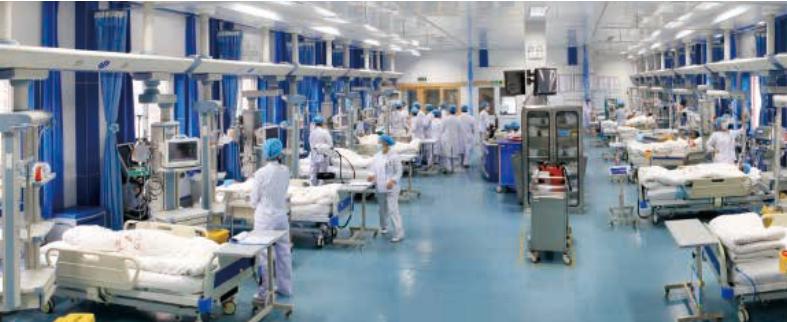

Door Air curtains / Door air barrier also known as Air door , Air Barrier , widely used in Factories , Shops , Restaurants ,
Pharmacies , Cold storage , Hotels , Hospitals , Airports , Stations and other environments and all air-conditioned place .
Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating
Indoor and Outdoor air , reduce energy consumption , prevent the intrusion of dust , insects and harmful gases
and provide a comfortable working , shopping and leisure environment .
INSTALLATION DIAGRAM
Step 1 Remover mounting plate from air curtain fuselage
Step 2 If installed on concrete and other hard wallk , need postion the mounting fix screw for
the mounting plate on the wall and then fix with M8 expansion screw , the exposed part of
the expansion screw is ensured to be in 13-15 mm .
Step 3 If mounted on a wooden board or soft , use STS tapping screw , Fix the mounting plate ot the wall
Step 4 Installation method of glass door
1 / Use strong nail - free glue direct smear to installation , Solidity , Affordable and artistic .
2 / Make a strut horizontally for fixting the gusset plate of the air curtain machine
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly,
convenient and efficient packaging services will be provided.
Company Profile
Foshan Nanhai Nanyang Electrical Machinery & motor Co., Ltd (NANYOO)
was founded in March 1987, and has been developing for 30 years.
It has become a professional and technological enterprise dedicated to the R&D,
manufacture and sales of curtain fans, ventilation fans and fresh air ventilation products.
Product Tags:
|
|
Copper Motor 90% Energy Saving Cross Flow Air Curtain For Various Places Images
|
