Commercial Economical Type Cross Flow Door Air Curtains Suitable For Business Shop
/ Office building
Model H3 Door Air Curtain - Latest metal plus plastic grill design , impact and grace outlooks .
Mounting Height : 2.3-3
FEATURES
- Latest metal plus plastic grill design , impact and grace outlooks
- Can be manual control or remote control
- The casing can be painted in an optional color
- Special air flow design , even air speed in each parts
- Low noise and higher air volume and speed

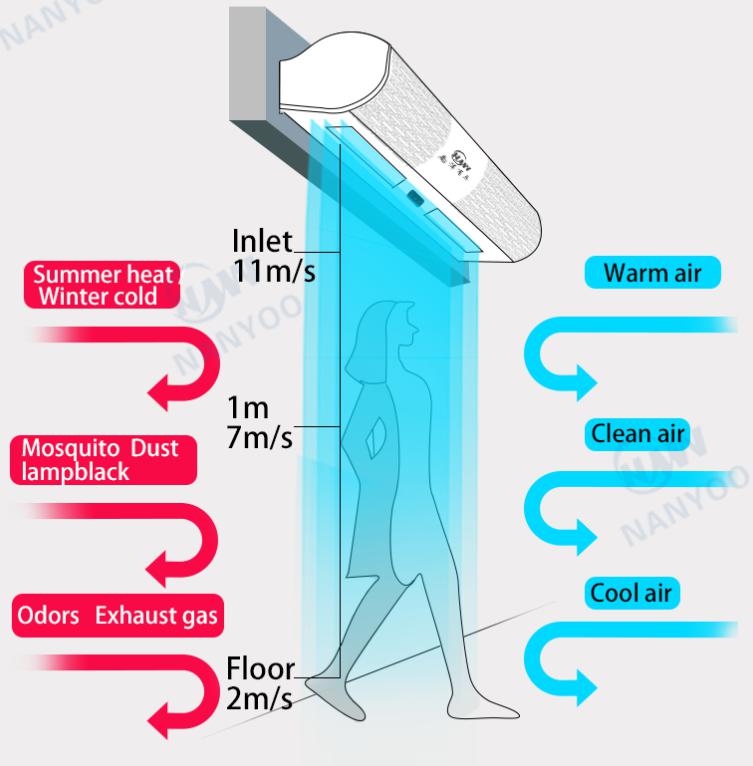

Working principle : SAVING 90% ENERGY
Door Air curtains / Door air barrier also known as Air door , Air Barrier , widely used in Factories
Shops , Restaurants , Pharmacies , Cold storage , Hotels , Hospitals , Airports , Stations
and other environments and all air-conditioned place .
Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean ,
prevent air circulating Indoor and Outdoor air , reduce energy consumption , prevent the intrusion of dust ,
insects and harmful gases and provide a comfortable working , shopping and leisure environment .
PRODUCTS PARAMETERS
Voltage/Frequency:220 - 240V / 50Hz , or 110V / 60Hz , 110V / 50Hz , 220V / 60Hz are all available
| Model | Diameter of Impeller | Input Power | Air
Velocity (m/s) | Air Volume | Noise | Fuselage Size | Mounting Height |
| (mm) | (W) | (m/s) | (m³/h)/CFM | (dB) | (mm) | (m) |
| FM-1009H3-2(Y) | 100 | 100 | 10-11 | 1550 | ≤45 | 910×178×176 | 2.3-3 |
| FM-1010H3-2(Y) | 100 | 115 | 10-11 | 1720 | ≤45 | 1005×178×176 | 2.3-3 |
| FM-1012H3-2(Y) | 100 | 135 | 10-11 | 2130 | ≤46 | 1205×178×176 | 2.3-3 |
| FM-1015H3-2(Y) | 100 | 150 | 10-11 | 2650 | ≤48 | 1500×178×176 | 2.3-3 |
| FM-1018H3-2(Y) | 100 | 180 | 10-11 | 3200 | ≤50 | 1795×178×176 | 2.3-3 |
| FM-1020H3-2(Y) | 100 | 185 | 10-11 | 3550 | ≤52 | 2000×178×176 | 2.3-3 |
Options model with high speed oe with electrical heating /
Multiple voice noise reduction technology more quiet , noise low for 45dB .

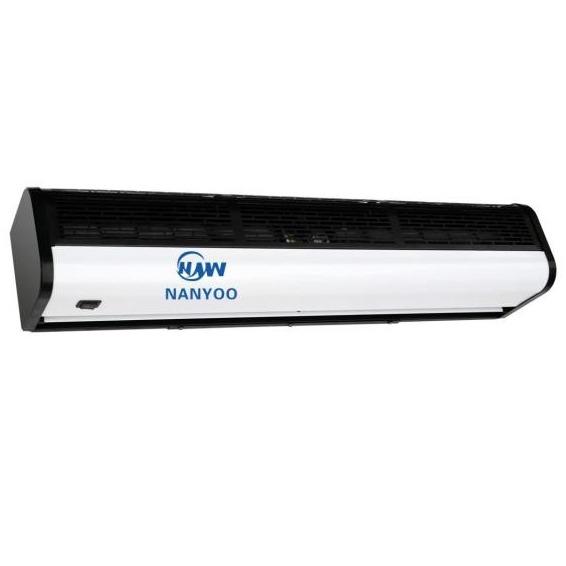

DIFFERENT ANGLE TO SHOW ( 360 ℃ views )
INSTALLATION DIAGRAM

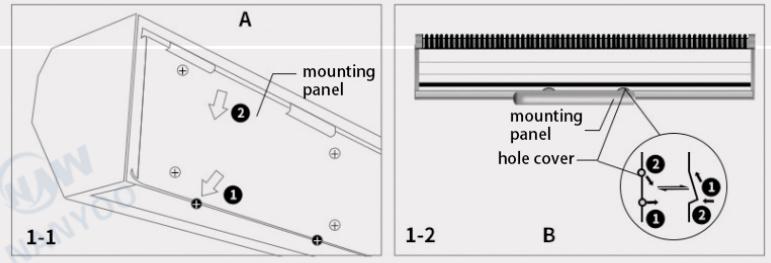

Step 1 Remover mounting plate from air curtain fuselage

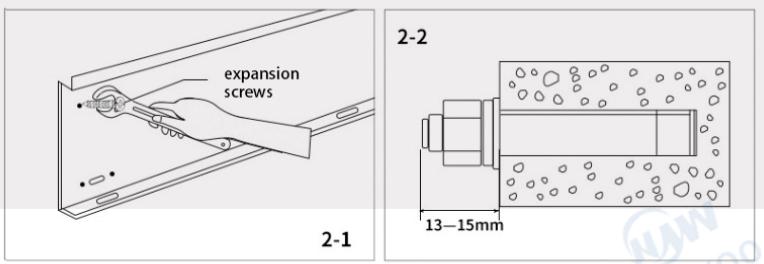

Step 2 If installed on concrete and other hard wallk , need postion the mounting fix screw
for the mounting plate on the wall , and then fix with M8 expansion screw , the exposed part
of the expansion screw is ensured to be in 13 -15 mm .

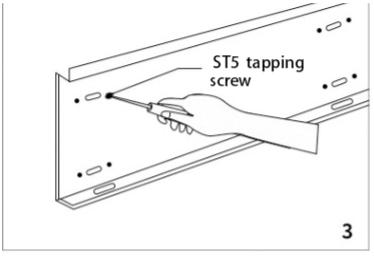

Step 3 If mounted on a wooden board or soft , use STS tapping screw , Fix the mounting plate ot the wall

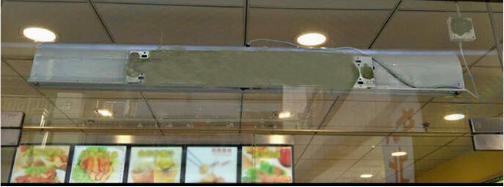

Step 4 Installation method of glass door
1 / Use strong nail - free glue direct smear to installation , Solidity , Affordable and artistic .
2 / Make a strut horizontally for fixting the gusset plate of the air curtain machine
APPLICATIONS

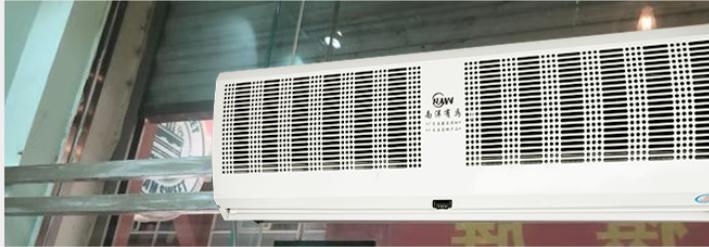

Widely used in door / gate of public places
Hotel and Restaurant / Shopping Center
