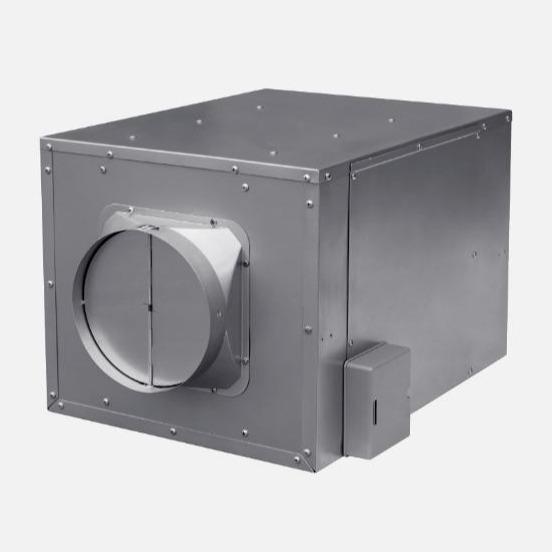

Silence Square Duct Fans

Name: Silence Square Duct Fans
Brand: NANYOO / OEM / ODM
Price: 1 USD

Quality Silence Square Duct Fans wholesale

Brand Name : NANYOO / OEM / ODM

Model Number : DPT10 / 15 / 20 /25

Certification : CE / CB / CCC

Place of Origin : China

MOQ : 1 unit

Price : Negotiated

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 20000 pcs per Month

Delivery Time : 30-35 work days

Packaging Details : As per factory standard

Type : Inline duct fan / duct fan ventilation

Electric current type : AC

Voltage : 220V / 50hz ,110V / 60hz

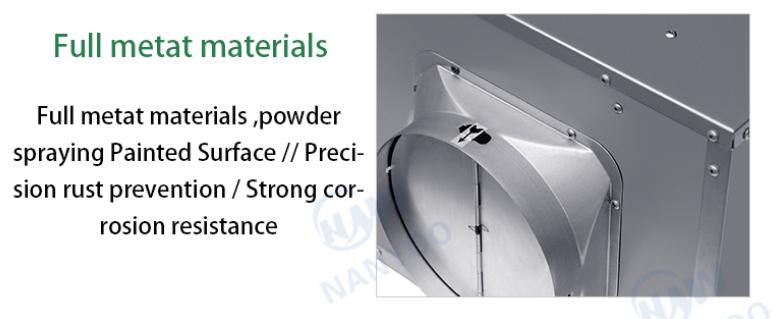

Material : Metal Housing / Fashion design

Mounting : Duct Fan, Inline fan

Air volume : 100 - 2300 m3 / h

Power : 21 - 550 W

application : For a variety of space - bedroom ,living room , schoolroom , kids room so on

Contact Now

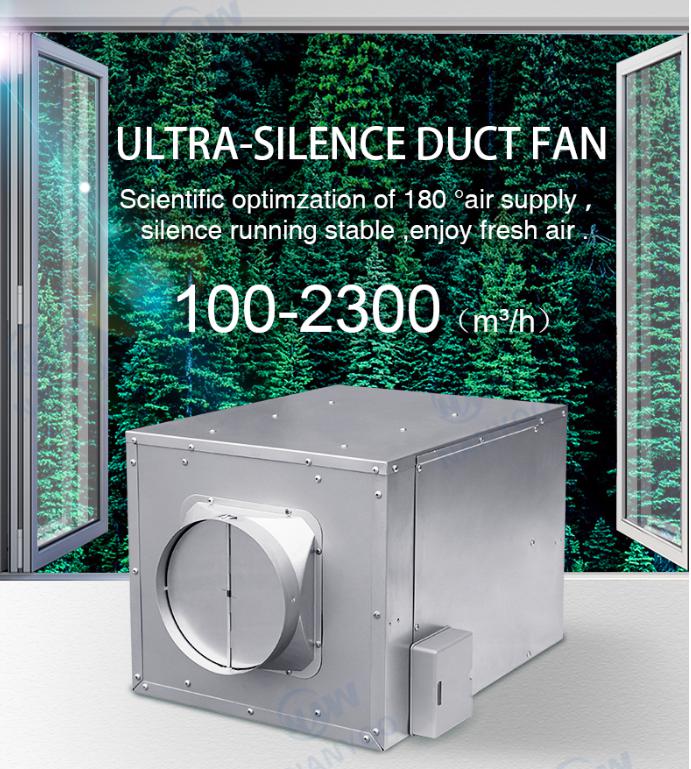

One Direction - Square Duct Fans Eesy Installation / Fresh Air / Oxygen - Rich / Silence

Fresh indoor environment

Fresh air / oxygen - rich / silence

Closed windows for a long time in the room lead to CO2 exceeding the standard ,feel oppressed ,

the new duct fan bring in the fresh air from outside , keeping fresh air indoor and ventilation

Silence Square Duct Fans

Product Structure Parsing

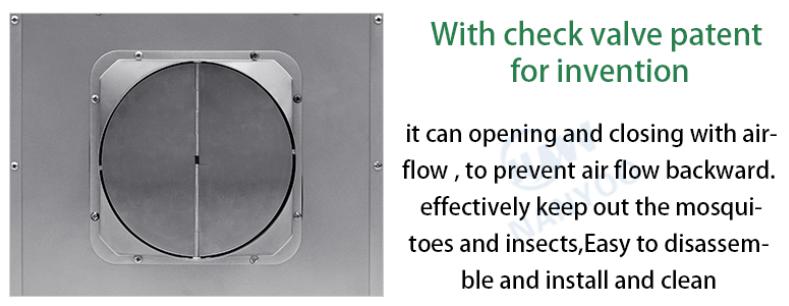

With check valve patent for invention , it can opening and closing with airflow ,to prevent air flow backward .

effectively keep out the mosquitoes and insects , Easy to disassemble and install and clean .

For a variety of space - bedroom ,living room , schoolroom , kids room so on

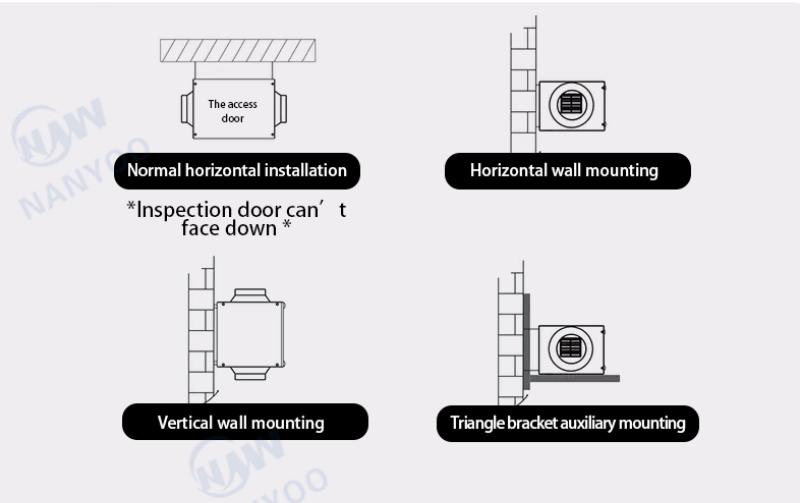

Easy Installation

Silence Square Duct Fans

Ventilation Duct Fan Size Description

Model	A	B	C	D	E	H	I	R	P	Q
DPT10-12B	340	298	95	240	65	68	210	100	200	285
DPT10-24B	340	298	95	240	65	68	210	100	200	285
DPT15-32B	340	298	150	240	75	53	120	120	240	285
DPT15-42B	390	348	150	270	75	58	140	140	280	315
DPT20-54B	420	378	200	340	65	64	140	140	280	385
DPT20-54C	490	448	200	370	65	58	160	160	320	415
DPT20-65B	520	478	200	400	65	74	183	183	365	445
DPT20-75B	520	478	200	400	65	74	183	183	365	445
DPT25-76B	590	548	250	400	75	74	190	190	380	445
DPT25-76C	590	548	250	400	75	74	190	190	380	445
DPT25-76D	590	548	250	400	75	74	190	190	380	445
DPT25-76E	590	548	250	400	75	74	190	190	380	445

Silence Square Duct Fans

Specification

Voltage / Frequency 220-240V / 50Hz or 110V / 0Hz , 110V / 50Hz , 220V / 60Hz are all available

Model	Duct Diameter	Power	Air Volume	Static Pressure	Noise	Speed Velocidad	Net Weight	Gross Weight	Usable Area	Carton Size
Model	Duct Diameter	(W)	(m³/h)/CFM	(Pa)	(dB)	rpm	(KG)	(KG)	(㎡)	(mm)
DPT10-12B	Φ100	21	100	80	20	1180	6.2	6.6	4-7	485325270
DPT10-24B	Φ100	52	180	160	23	1800	6.2	6.6	7-12	485325270
DPT15-32B	Φ150	40	360	132	42	1050	7.7	8.3	12-22	512322317
DPT15-42B	Φ150	100	500	167	49	1250	11.2	11.8	25-28	570360355
DPT20-54B	Φ200	135	770	200	47	800	12.6	13.2	28-35	585430355
DPT20-54C	Φ200	155	920	240	48	950	17.0	17.7	35-40	640*450-385
DPT20-65B	Φ200	220	1200	360	48	1100	20.3	21.1	40-50	675480450
DPT20-75B	Φ250	320	1500	380	49	1250	20.3	21.1	50-60	675480450
DPT25-76B	Φ250	350	1700	420	53	1050	23.0	24.1	60-70	765495455
DPT25-76C	Φ250	400	1900	430	54	1150	23.0	24.1	70-80	765495455
DPT25-76D	Φ250	500	2100	450	56	1300	23.0	24.1	80-90	765495455
DPT25-76E	Φ250	550	2300	480	58	1360	23.0	24.1	90-100	765495455
