Energy Saving Commercial ABS Door Air Barrier Used For Coffee Shop Dining Room
Plastic air curtain with exquisite appearance / low noise suitable for your home and office
Door air curtain plastic appearance with special and elegant design

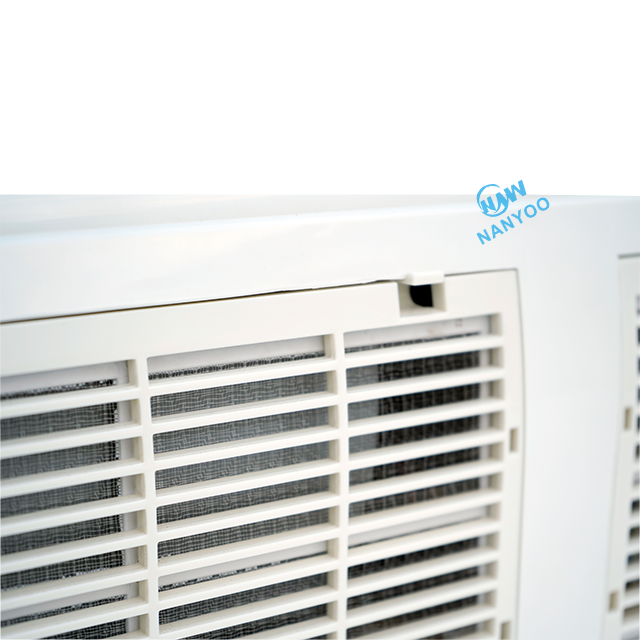

With filter and easy cleaning
Four control models to meet different clients needs and loactions
Voltage/Frequency 220-240V/50Hz , or 110V/60Hz , 110V/50Hz , 220V/60Hz are all available
| Model | Input Power (W) | Air
Velocity (m/s) | Air Volume (m³/h)/CFM | Noise (dB) | Unit Size | Mounting Height |
| H | M | L | H | M | L | H | M | L | H | M | L | (mm) | (m) |

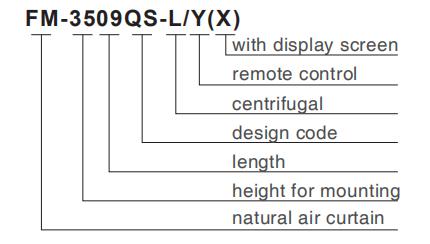

| FM-3509QS-L/Y(X) | 200 | 180 | 150 | 15.5 | 14.3 | 12.5 | 1080/635 | 996/586 | 870/512 | ≤44 | ≤42 | ≤41 | 900x230x220 | 3-3.5 |
| FM-3512QS-L/Y(X) | 250 | 225 | 185 | 15.5 | 14.3 | 12.5 | 1450/853 | 1337/786 | 1168/687 | ≤45 | ≤43 | ≤42 | 1200x230x220 | 3-3.5 |
| FM-3515QS-L/Y(X) | 325 | 290 | 240 | 15.5 | 14.3 | 12.5 | 1800/1059 | 1600/941 | 1398/822 | ≤48 | ≤46 | ≤44 | 1500x230x220 | 3-3.5 |
| FM-4509QS-L/(Y)(X) | 350 | 260 | 200 | 19 | 16 | 12.5 | 1320/776 | 1100/647 | 860/506 | ≤46 | ≤44 | ≤42 | 900x230x220 | 4-4.5 |
| FM-4512QS-L/(Y)(X) | 440 | 320 | 225 | 19 | 16 | 12.5 | 1770/1041 | 1455/856 | 1150/676 | ≤47 | ≤45 | ≤43 | 1200x230x220 | 4-4.5 |
| FM-4515QS-L/(Y)(X) | 575 | 435 | 330 | 19 | 16 | 12.5 | 2200/1294 | 1850/1088 | 1450/853 | ≤50 | ≤47 | ≤45 | 1500x230x220 | 4-4.5 |
| FM-5509QS-L/(Y)(X) | 440 | 325 | 250 | 22 | 18.5 | 14.5 | 1520/894 | 1270/747 | 1000/588 | ≤52 | ≤50 | ≤47 | 900x230x220 | 5-5.5 |
| FM-5512QS-L/(Y)(X) | 530 | 385 | 270 | 22 | 18.5 | 14.5 | 2027/1192 | 1670/1044 | 1330/782 | ≤54 | ≤52 | ≤50 | 1200x230x220 | 5-5.5 |
| FM-5515QS-L/(Y)(X) | 710 | 535 | 405 | 22 | 18.5 | 14.5 | 2543/1496 | 2135/1256 | 1680/988 | ≤55 | ≤53 | ≤51 | 1500x230x220 | 5-5.5 |
Mounting height for 3 m - 5.5 m
Door Air Barrier suitable for many kinds of places
>>widely used in Factories , Shops , Restaurants , Hotels ,
Cold storage , Pharmacies , Hospitals , Airports , Stations and
other environments and all air-conditioned place .
Keep the effect of air conditioning, save energy and circulate air
Isolating the dust, odor and mosquitoes, etc., to keep the indoor air comfortable
Motor : Mute Centrifugal - Flow wheel
Higher air pressure , Stronger air velocity, Lower noise

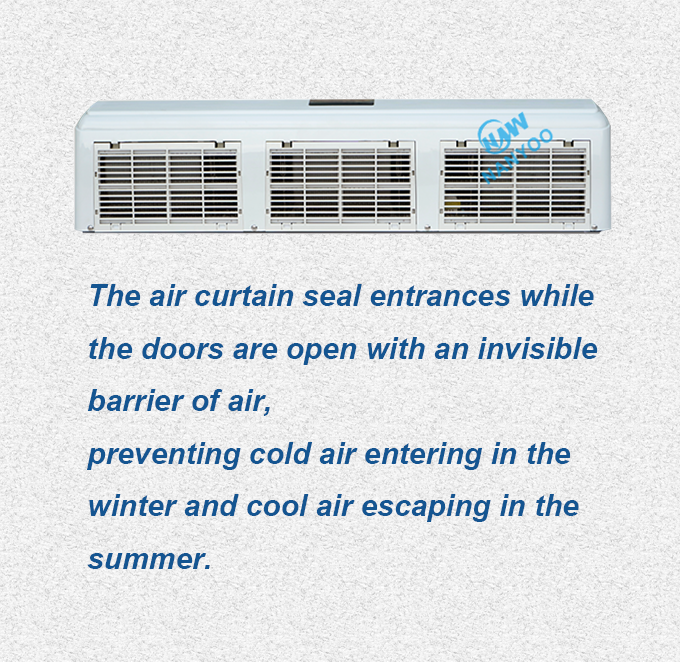

Working principle : SAVING 90% ENERGY
Door Air Curtain also known as Air door , Air Barrier , widely used in Factories / Shops / Restaurants / Pharmacies
Cold storage / Hotels / Hospitals / Airports / Stations and other environments and all air-conditioned place
Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating Indoor
and Outdoor air , reduce energy consumption , prevent the intrusion of dust , insects and harmful gases,
and provide a comfortable working , shopping and leisure environment.
Product Specification
